Scenario Description
In modern enterprises, cross-datacenter and hybrid cloud environments often face the challenge of network isolation, preventing direct access to resources in different geographical locations. When users perform cross-regional operations, they frequently encounter cumbersome manual configurations and security verifications, increasing management complexity and potential security risks. To address this challenge, JumpServer offers a Zone feature that introduces gateway servers, providing a centralized login entry point that simplifies cross-environment access processes. Users only need to authenticate through the gateway to securely and efficiently access resources distributed across various datacenters or cloud platforms. This solution not only enhances connectivity convenience but also strengthens overall security, meeting enterprises' demands for flexibility and security.
Function Description
The Zone feature is designed to address connectivity issues in certain environments (such as cross-datacenter and hybrid cloud scenarios) where direct connections are not possible. It works by allowing JumpServer to perform jump logins to target assets through a gateway server.
Configuration Description
Configure the zone and gateway.

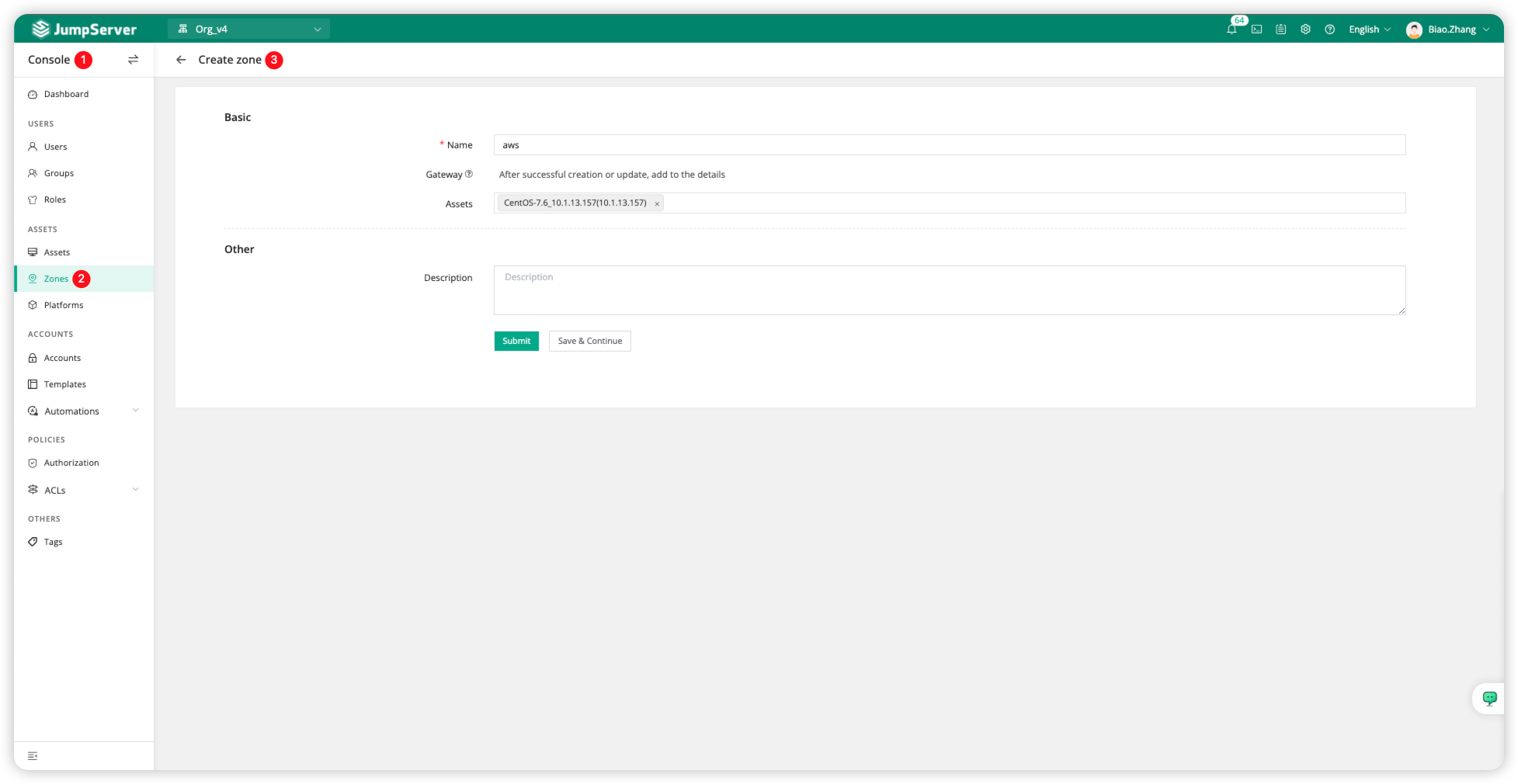

Create Zone
Switch to the JumpServer Console page, click on <Zones>, and then <Create> a new zone,In this zone, we can select the target asset information that can be accessed through it.
Create Gateway

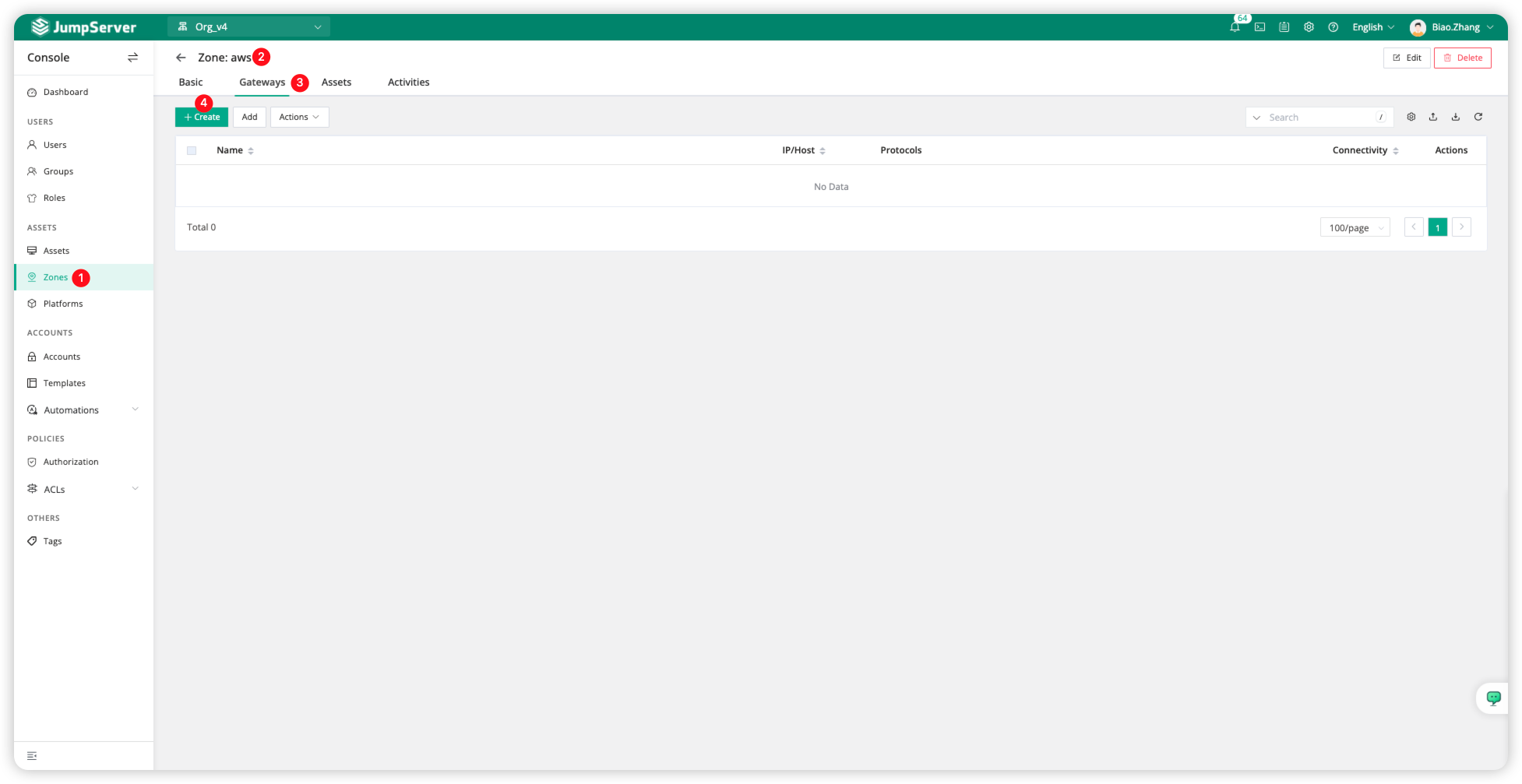

After successfully creating the zone, click on the zone name, and then select <Gateways> to enter the gateway configuration page.

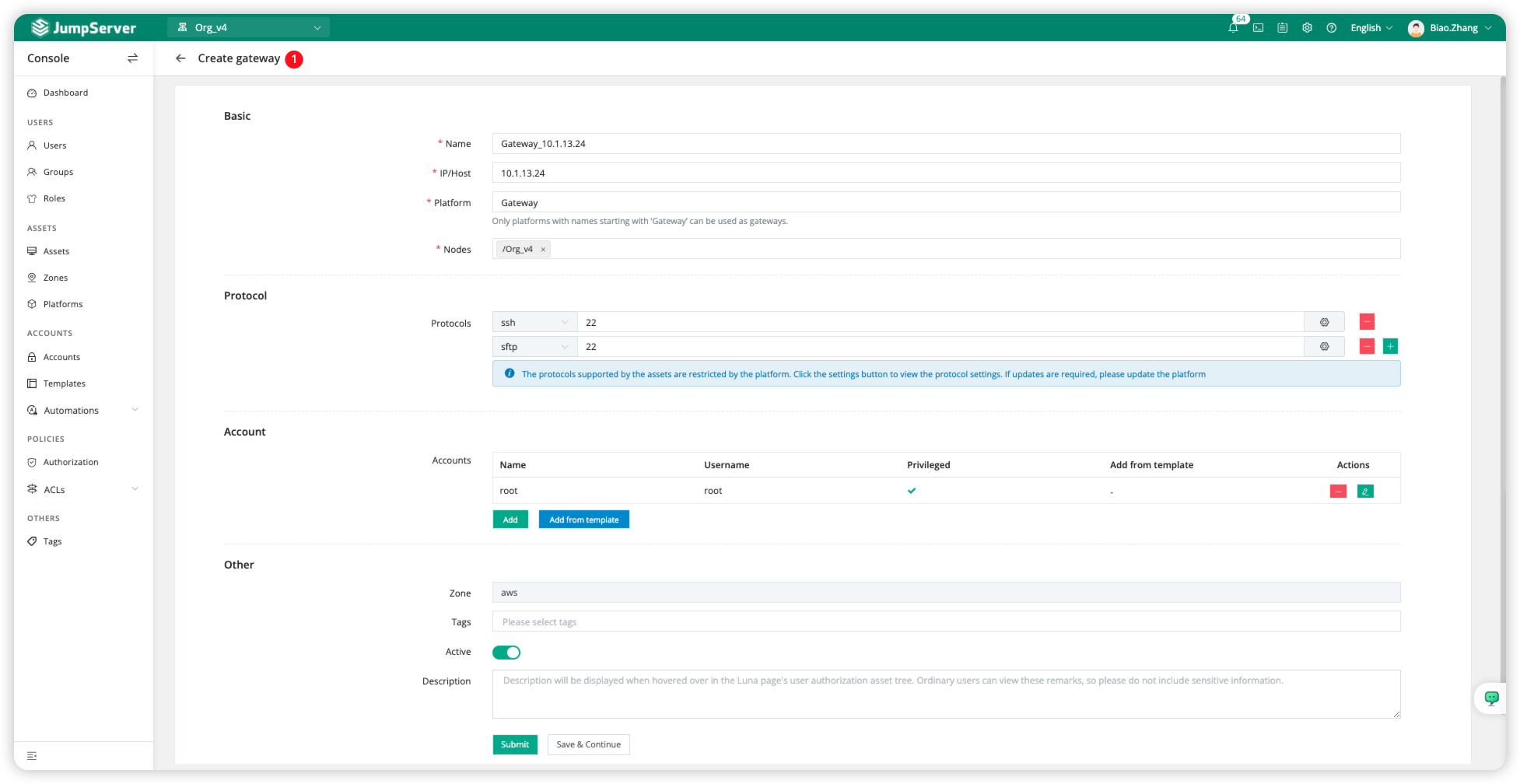

Click <Create> to enter the gateway creation page, where you can fill in the relevant server information.
Function Verification
Test the connectivity of the Gateway and the target assets connected through the zone.

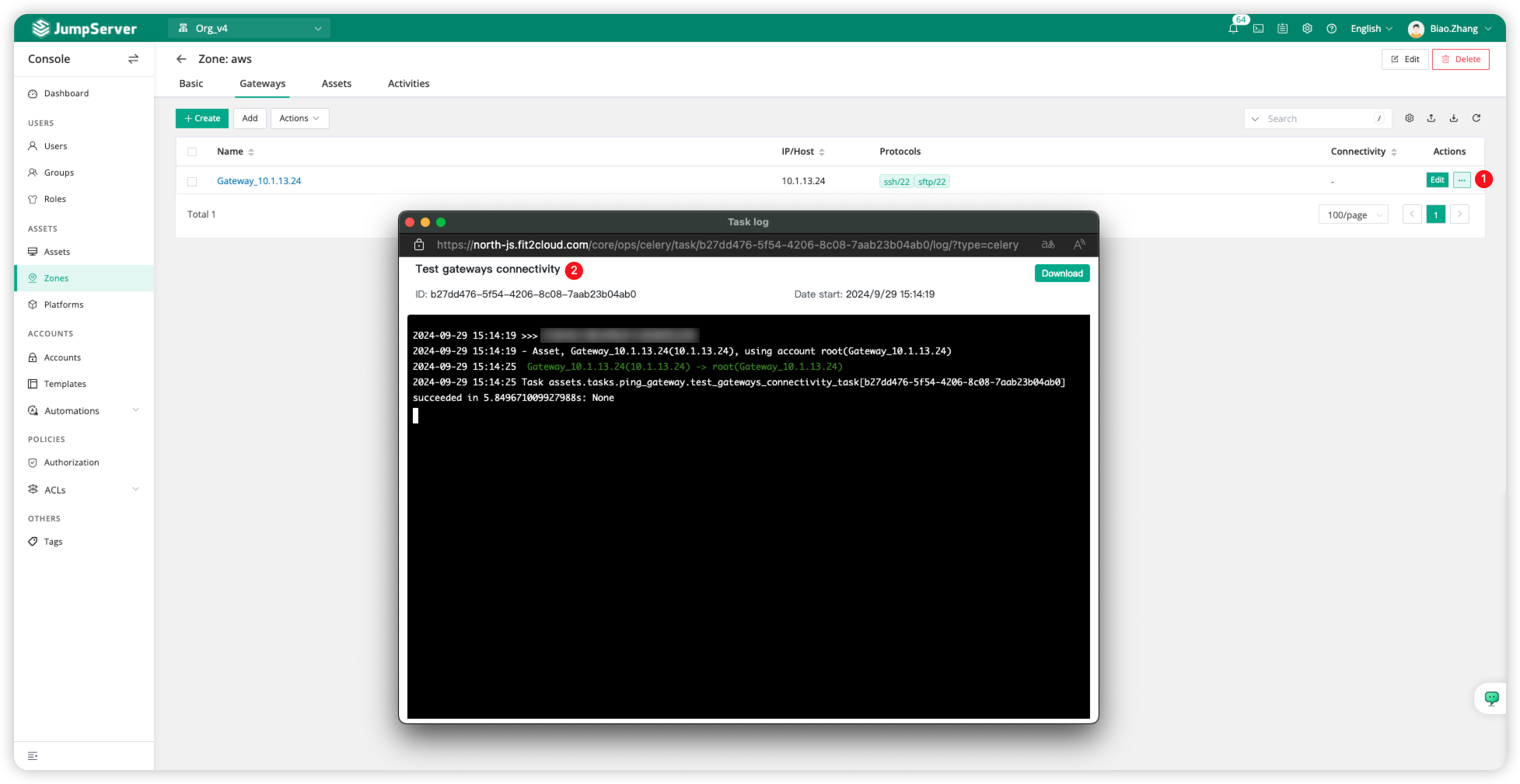

Test Gateway
Click the <···> button next to the gateway, then click <Test connection> to test the connectivity of the gateway.

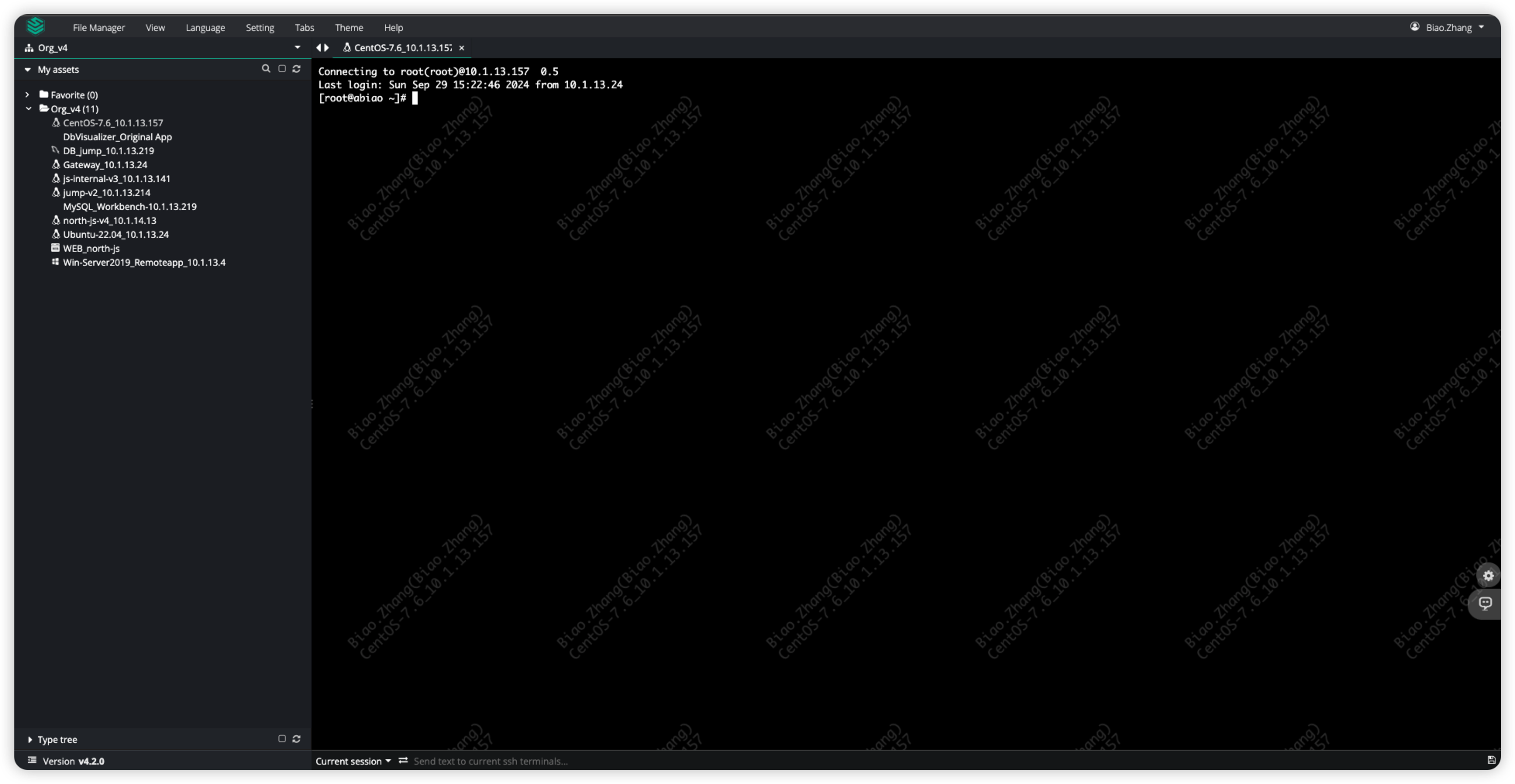

Test Asset connection
Switch to the Web Terminal page, select the asset bound to the Zone, and connect successfully.
